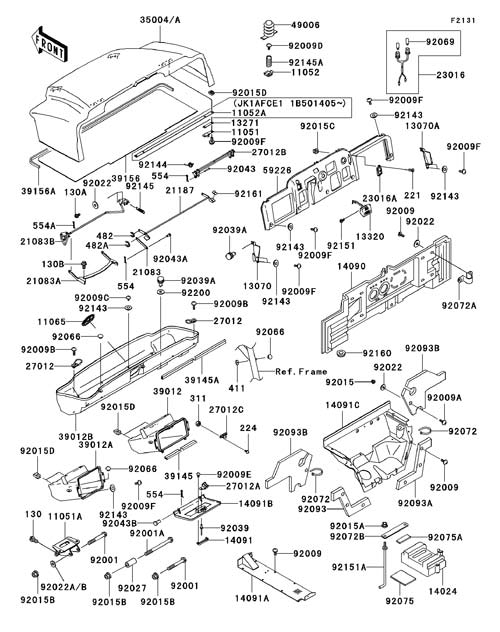

Category: Frame Fittings KAF620 E1

Click here to return to model selection.



Note: If a part you need is on the
diagram but not on the price list,
Email us and we will promptly add it.
parts@atvworks.com

Description

Part Number

Price

11065-1053-6Z CAP,F.BLACK

11065-1053-6Z

$7.90

14024-1792 COVER, BATTERY

14024-1792

$35.00

14091-1378 COVER FLOOR

14091-1378

$74.12

49006-1347 Boot

49006-1347

$7.95

59226-1060-AZ PANEL-CONTROL,GRAY

59226-1060-AZ

$103.98

92001-1600 BOLT,FLANGED,10X70

92001-1600

$4.50

92009-1166 SCREW,TAPPING

92009-1166

$8.65

92022-1346 WASHER,6.5X20X1.6.BLA

92022-1346

$0.16

92066-1485 PLUG

92066-1485

$1.74

92069-1020 Bulb

92069-1020

$4.00

92143-1087 COLLAR

92143-1087

$3.42

92151-1897 BOLT,BATTERY

92151-1897

$6.09
