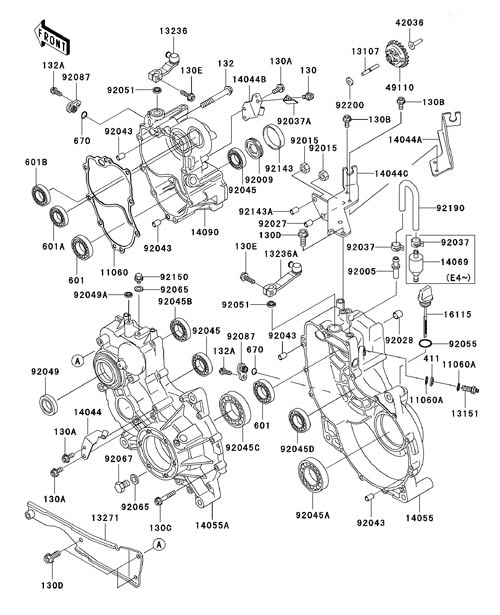

Category: Gear Box, KAF620 E1-E5, H1-H3Click here to return to model selection.
Note: If a part you need is on the diagram but not on the price list, Email us and we will promptly add it.
parts@atvworks.com
Description | Part Number | Price | 11060-1310 GASKET,GEAR CASE COVE | 11060-1310 | $18.92 | |
11060-1966 GASKET | 11060-1966 | $2.10 | |
13107-2235 SHAFT | 13107-2235 | $3.50 | |
13151-1093 SWITCH-COMP | 13151-1093 | $46.95 | |
13236-1363 LEVER-COMP | 13236-1363 | $39.54 | |
13236-1372 LEVER-COMP | 13236-1372 | $54.20 | |
14044-1075 HOLDER-CABLE,HI/LOW | 14044-1075 | $25.78 | |
14055-1110 CASE-GEAR,RH | 14055-1110 | $212.68 | |
14055-1158 CASE-GEAR,LH | 14055-1158 | $185.00 | |
16115-1060 CAP-OIL FILLER | 16115-1060 | $14.50 | |
42036-2060 SLEEVE-GOVERNOR | 42036-2060 | $3.50 | |
601B6007 BEARING-BALL *Interchanges with 92045-0106 | 601B6007 | $25.00 | |
601B6303 BEARING BALL | 601B6303 | $3.99 | |
601B6303U BEARING-BALL | 601B6303U | $15.88 | |
670D1510 O RING, 10MM | 670D1510 | $2.25 | |
92005-1127 FITTING,BREATHER | 92005-1127 | $11.19 | |
92015-1432 NUT, 8MM | 92015-1432 | $4.54 | |
92027-1568 COLLAR,8.3X11.5X9 | 92027-1568 | $1.00 | |
92028-132 BUSHING | 92028-132 | $20.00 | |
92037A CLAMP, TUBE | 92037-1505 | $4.50 | |
92043-1263 PIN,DOWEL,6.2X8X14 | 92043-1263 | $0.95 | |
92045-1142 BEARING-BALL *Interchanges with 92045-0090 | 92045-1142 | $38.00 | |
92045-1162 BEARING-BALL, 6010CM | 92045-1162 | $48.00 | |
92045-1207 BEARING-BALL | 92045-1207 | $17.90 | |
92045C BEARING-BALL,6210CM | 92045-1213 | $50.00 | |
92045-1285 BEARING-BALL, TMB205JR2 | 92045-1285 | $27.50 | |
92049-1297 SEAL-OIL,TC28X47X7 | 92049-1297 | $13.00 | |
92049-2097 Oil Seal | 92049-2097 | $2.00 | |
92051-005 Oil Seal | 92051-005 | $10.25 | |
92055-2185 RING-O, 20MM | 92055-2185 | $4.51 | |
92065-058 GASKET, 10.5X16X1 | 92065-058 | $7.00 | |
92067-001 PLUG,DRAIN,10X12 | 92067-001 | $2.83 | |
92143-1642 COLLAR,8.5X15X9 | 92143-1642 | $2.25 | |
92200-2036 WASHER,6.2X20X0.5 | 92200-2036 | $0.56 | |
|
|
