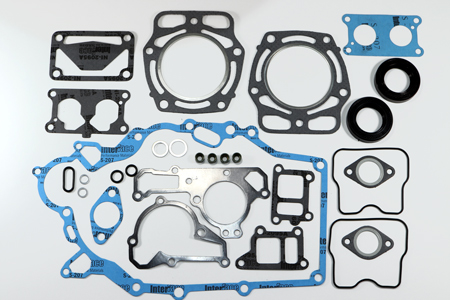

Kawasaki Mule KAF620 Engine Gasket Rebuild Kit

Price: $75.00
KAF620 Engine / John Deere FD620 / FD661 Rebuild Kit:

Complete Gasket / Seal Kit

Includes Replacement Parts for the following part #'s:
11004-2107 2 Head Gasket
11060-2089 1 Breather Cover Gasket
11060-2478 1 Carb. Gasket
11060-2479 1 Carb. Gasket
11060-2449 1 Crankcase Cover Gasket
11061-2182 2 Rocker Case Gasket
11009-3028 2 Check Valve Gasket
11060-2339 1 Carb. Gasket
11060-2087 1 Intake Manifold Gasket
11060-2088 1 Intake Manifold Gasket
92049-2109 4 Oil Seal
11060-2084 1 Thermostat Cover Gasket
11060-2451 1 Water Pump Gasket
11060-2450 1 Water Pump Gasket
11009-1467 1 Gasket
11009-2766 1 Pressure Switch Gasket
92055-2086 1 O-Ring
670B2011 1 O-Ring 11MM
670B2010 1 O-Ring 10MM
11060-2079 2 Exhaust Pipe Gasket
92049-2112 2 Crankshaft Oil Seal

Fits the following Kawasaki Gas Mules:
2500, 2510, 2520, 3000, 3010, 3010, 3020, 4000, 4000, 4010, 4010 (1 & 2 Rows of Seats)
Fits the following John Deere Models: 425, 445, F911, & 6x4 Gator GX345
-
+
Product ID KD326
Date Added
10/10/2012
KAF620 Engine / John Deere FD620 / FD661 Rebuild Kit:

Complete Gasket / Seal Kit

Includes Replacement Parts for the following part #'s:
11004-2107 2 Head Gasket
11060-2089 1 Breather Cover Gasket
11060-2478 1 Carb. Gasket
11060-2479 1 Carb. Gasket
11060-2449 1 Crankcase Cover Gasket
11061-2182 2 Rocker Case Gasket
11009-3028 2 Check Valve Gasket
11060-2339 1 Carb. Gasket
11060-2087 1 Intake Manifold Gasket
11060-2088 1 Intake Manifold Gasket
92049-2109 4 Oil Seal
11060-2084 1 Thermostat Cover Gasket
11060-2451 1 Water Pump Gasket
11060-2450 1 Water Pump Gasket
11009-1467 1 Gasket
11009-2766 1 Pressure Switch Gasket
92055-2086 1 O-Ring
670B2011 1 O-Ring 11MM
670B2010 1 O-Ring 10MM
11060-2079 2 Exhaust Pipe Gasket
92049-2112 2 Crankshaft Oil Seal

Fits the following Kawasaki Gas Mules:
2500, 2510, 2520, 3000, 3010, 3010, 3020, 4000, 4000, 4010, 4010 (1 & 2 Rows of Seats)
Fits the following John Deere Models: 425, 445, F911, & 6x4 Gator GX345
