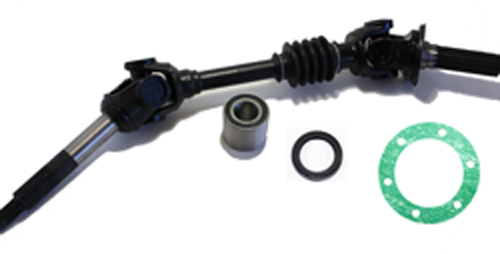

KD39158-3010/4010Kit KAWASAKI MULE COMPLETE REAR DRIVE SHAFT w/ Bearing

Price: $175.00
New Aftermarket Complete Heavy Duty Rear Drive Shaft (Left or Right)

Fits Kawasaki Mules: 3000 / 3010 / 3020 / 4000 / 4010

Includes: 1 Aftermarket Bearing, 1 Aftermarket Cover Gasket, 1 Aftermarket Oil Seal

Axle Replaces OEM:
On a 3010 Mule: Replaces both Shafts 39158-1109, 39158-1105 and Boot 49006-1257
On a 4010 Mule: Replaces both shafts 39158-1119, 39158-1120, and Boot 49006-1257

Bearing Replaces OEM #: (KDBG303)
92045-1411 supersedes 92045-0107 (25BWD02C)
92045-0021 supersedes 92045-0094 (25BWD02A)
92045-0028 supersedes 92045-0102 (DAC2552W)
25mm x 52mm x 42mm

Oil Seal Replaces OEM#:
92049-1298
35mm x 55mm x 8mm

Cover Gasket Replaces OEM#:
11060-1251 & 11009-1689
Product ID KD39158-30104010Kit
Date Added
3/31/2016
New Aftermarket Complete Heavy Duty Rear Drive Shaft (Left or Right)

Fits Kawasaki Mules: 3000 / 3010 / 3020 / 4000 / 4010

Includes: 1 Aftermarket Bearing, 1 Aftermarket Cover Gasket, 1 Aftermarket Oil Seal

Axle Replaces OEM:
On a 3010 Mule: Replaces both Shafts 39158-1109, 39158-1105 and Boot 49006-1257
On a 4010 Mule: Replaces both shafts 39158-1119, 39158-1120, and Boot 49006-1257

Bearing Replaces OEM #: (KDBG303)
92045-1411 supersedes 92045-0107 (25BWD02C)
92045-0021 supersedes 92045-0094 (25BWD02A)
92045-0028 supersedes 92045-0102 (DAC2552W)
25mm x 52mm x 42mm

Oil Seal Replaces OEM#:
92049-1298
35mm x 55mm x 8mm

Cover Gasket Replaces OEM#:
11060-1251 & 11009-1689
